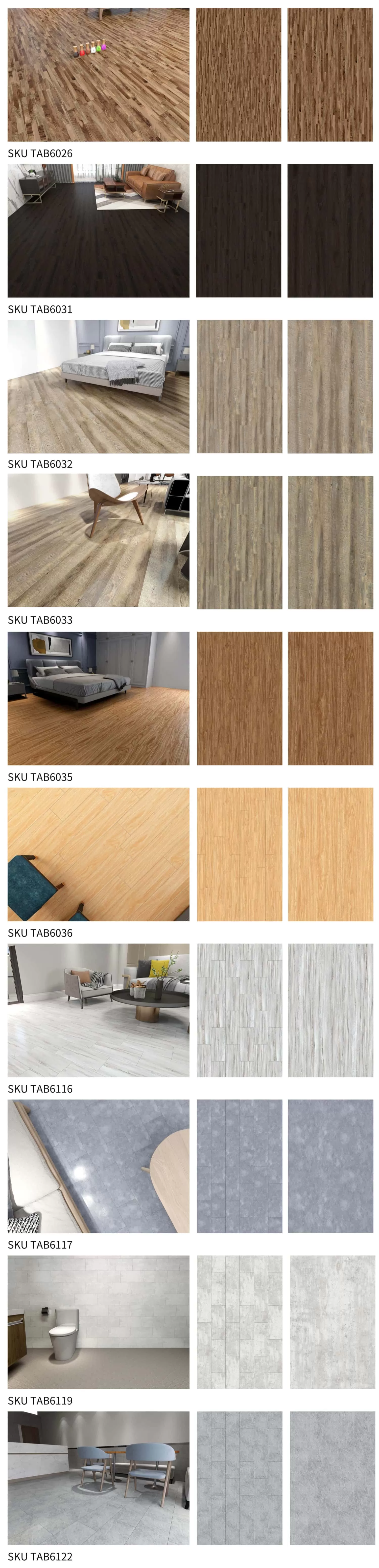

Choose designs that match your market positioning:

Wood Look (Mainstream) – natural patterns for broad residential and commercial interiors

Modern Stone/Concrete Look – clean and minimal style for offices and retail

Textured Finishes – realistic visual depth and better design expression

Multiple Color Tones – from warm residential tones to modern commercial tones

Design and surface options can be recommended based on your target market and project style.

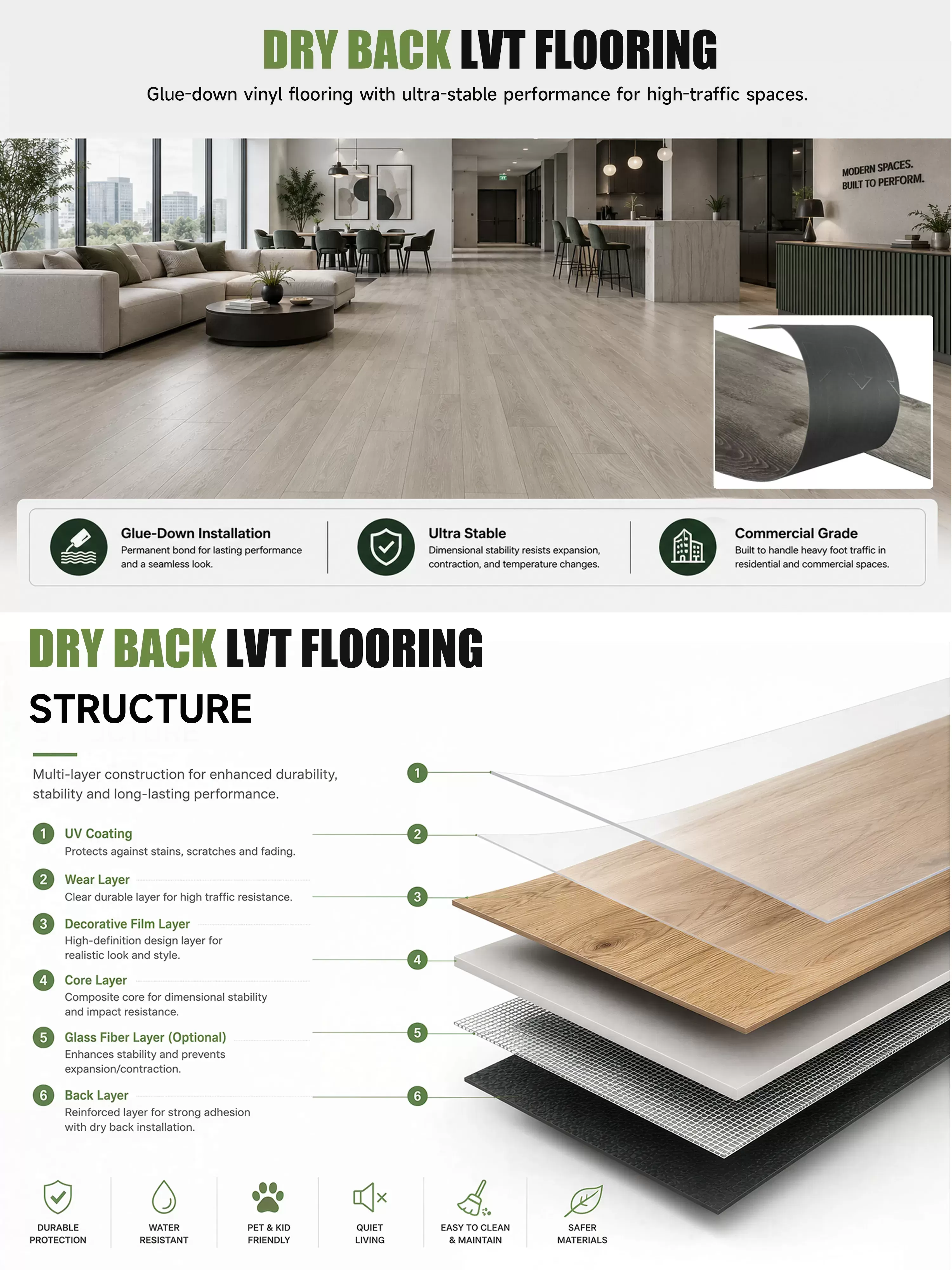

LVT Dry Back Flooring (Dry Back Luxury Vinyl Tiles) has a clearly defined physical structure, with each layer serving a specific function. Similar to click-lock LVT in its core layer, it lacks a click-lock system and has a different bottom layer design.

Structural Details

1. Wear Layer

Thickness: Commercial grade is typically 0.3mm - 0.7mm; high-end commercial or heavy-duty commercial grades can exceed 1.0mm.

2. Decorative Layer

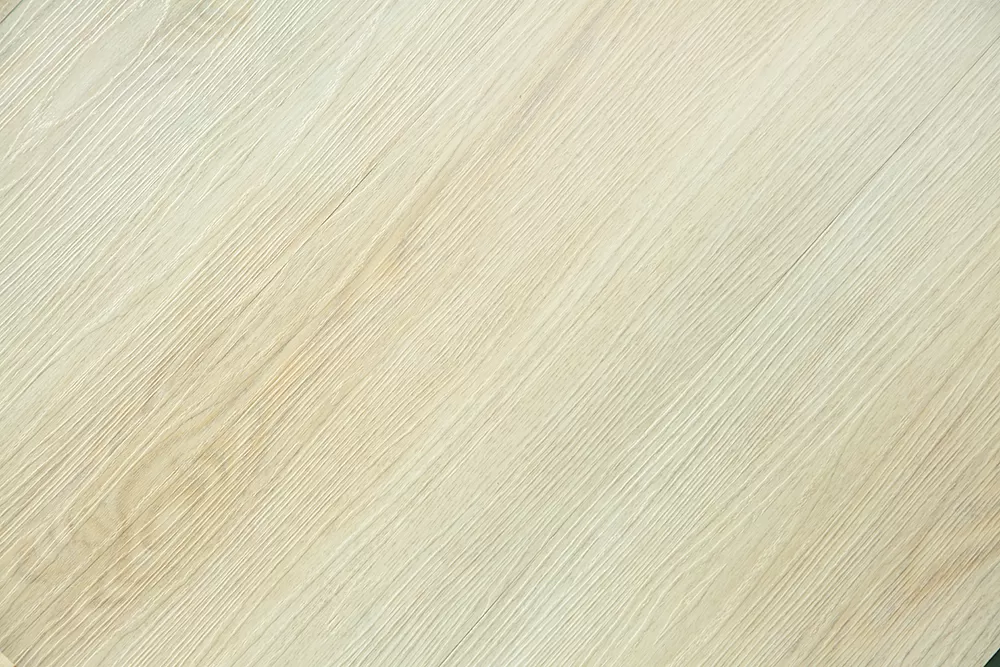

Function: Realistically mimics the textures of wood, stone, concrete, etc., using high-definition photography and printing technology.

The pattern usually runs the entire length of the tile, ensuring the texture remains continuous and aesthetically pleasing even after cutting.

3. Core Layer

This is the "skeleton" of the LVT. The core layer of dry-back LVT is as rigid as click-lock LVT, but its shape is a flat rectangle without a click mechanism.

Thickness: Typically 3mm - 8mm. A thicker core layer provides a better feel underfoot, but the overall thickness of dry-back LVT is usually slightly thinner than click-lock LVT.

4. Fiberglass Layer

Function: Provides bidirectional stability, preventing warping or deformation of the tiles in both length and width directions.

Enhancing the overall structural strength and dimensional stability of the product is one of the hallmarks of high-quality dry-back LVT.

5. Dry-Back Substrate

Core Functions:

Optimized Adhesion: Its textured design acts like a "suction cup," allowing applied liquid adhesive to penetrate and hold better, forming a strong bond and preventing delamination.

Stress Balancing: Provides slight flexibility to help compensate for minor unevenness in the substrate.

Enhanced Sound Insulation: Provides a degree of cushioning and sound insulation

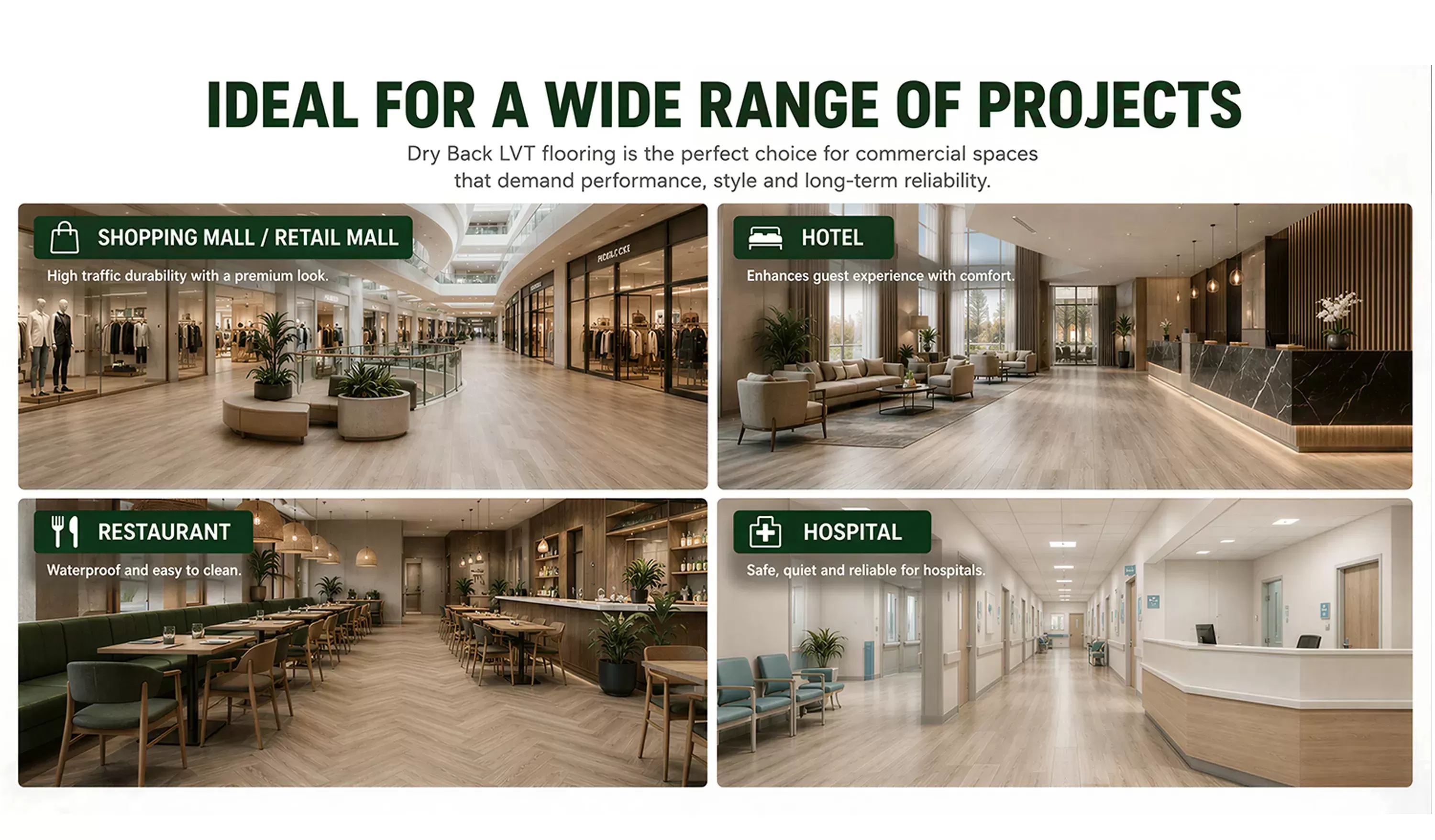

LVT Dry Back Floor is an "engineering-oriented" flooring material. Its primary applications are determined by its core values of "permanence and ultra-high stability."

It should be considered as a priority when your project meets any of the following criteria:

Spatial Attributes: Commercial, public, high-traffic.

Load Types: Presence of numerous heavy, wheeled mobile objects (trolleys, equipment chairs, medical beds, shelves).

Installation Requirements: Achieving an extremely flat, seamless, and unified visual and functional effect.

Substrate Conditions: A flat, solid concrete substrate, and the most reliable installation solution.

We provide export-standard packing suitable for international shipment. Packing solutions can be aligned with your product positioning and logistics requirements.

• Standard carton packing with palletizing options

• Container loading support and shipment coordination upon request

• OEM carton design available for private label partners

If you need a packing reference (carton size, labels, loading plan), contact us and we will provide a practical proposal.
