Commercial interior design requires materials that balance aesthetic value with mechanical longevity. Flooring, being the most abused surface in any commercial facility, demands meticulous specification. Among the various resilient flooring categories, luxury vinyl has emerged as a dominant specification choice for retail, hospitality, multi-family housing, and healthcare environments. Specifying the correct product requires an understanding of polymer chemistry, manufacturing processes, and structural engineering. This analysis examines the performance parameters of these resilient surfaces, providing commercial specifiers with the data needed to make informed procurement decisions.
TAB Flooring manufactures custom solutions that address these structural requirements, ensuring that each square meter specified meets rigorous commercial standards. By focusing on raw material purity, precise extrusion, and advanced surface treatments, modern manufacturing processes have resolved many of the historical limitations associated with resilient flooring materials.
The Multi-Layer Construction of Commercial Luxury Vinyl
To evaluate the performance of luxury vinyl, one must dissect its stratified composition. Unlike monolithic flooring materials, resilient planks rely on co-extrusion or hot-pressing techniques to bond several distinct layers into a single cohesive unit. Each layer serves a specific mechanical or aesthetic purpose, and the thickness and quality of these layers dictate the product's classification and warranty terms.
| Layer Name | Standard Thickness / Composition | Primary Function |
|---|---|---|
| Polyurethane Lacquer (UV Coating) | 5 – 15 microns (with ceramic beads) | Scratch resistance, stain protection, gloss control |
| Wear Layer | 0.3mm (12 mil) to 0.7mm (28 mil) pure PVC | Protects print film from physical wear and abrasion |
| Print Film Layer | 0.07mm to 0.10mm high-definition film | Provides visual aesthetics (wood, stone, concrete patterns) |
| Core Layer (SPC or LVT) | 2.0mm to 6.0mm (PVC/CaCO3 composite) | Provides dimensional stability, impact resistance, and structural integrity |
| Underlayment (Optional) | 1.0mm to 2.0mm IXPE or EVA foam | Acoustic dampening, subfloor imperfection absorption |
The Wear Layer: Micron Ratings and Polyurethane Coatings
The wear layer is the primary barrier against physical abrasion. It is composed of clear, non-tempered polyvinyl chloride. For light commercial spaces, a wear layer thickness of 0.50mm (20 mil) is typically recommended. For heavy commercial environments such as airports, hospitals, and busy retail corridors, specifiers should require a 0.70mm (28 mil) wear layer.
Beyond the thickness of the PVC wear layer, the surface treatment applied during manufacturing governs long-term maintenance costs. Modern production lines apply a double-cured polyurethane coating cross-linked with microscopic ceramic beads or aluminum oxide particles. This coating reduces the surface energy of the plank, preventing dirt, scuffs, and chemical staining agents from bonding with the polymer. This treatment eliminates the need for periodic stripping, waxing, or polishing, reducing the lifetime maintenance budget of commercial facilities.

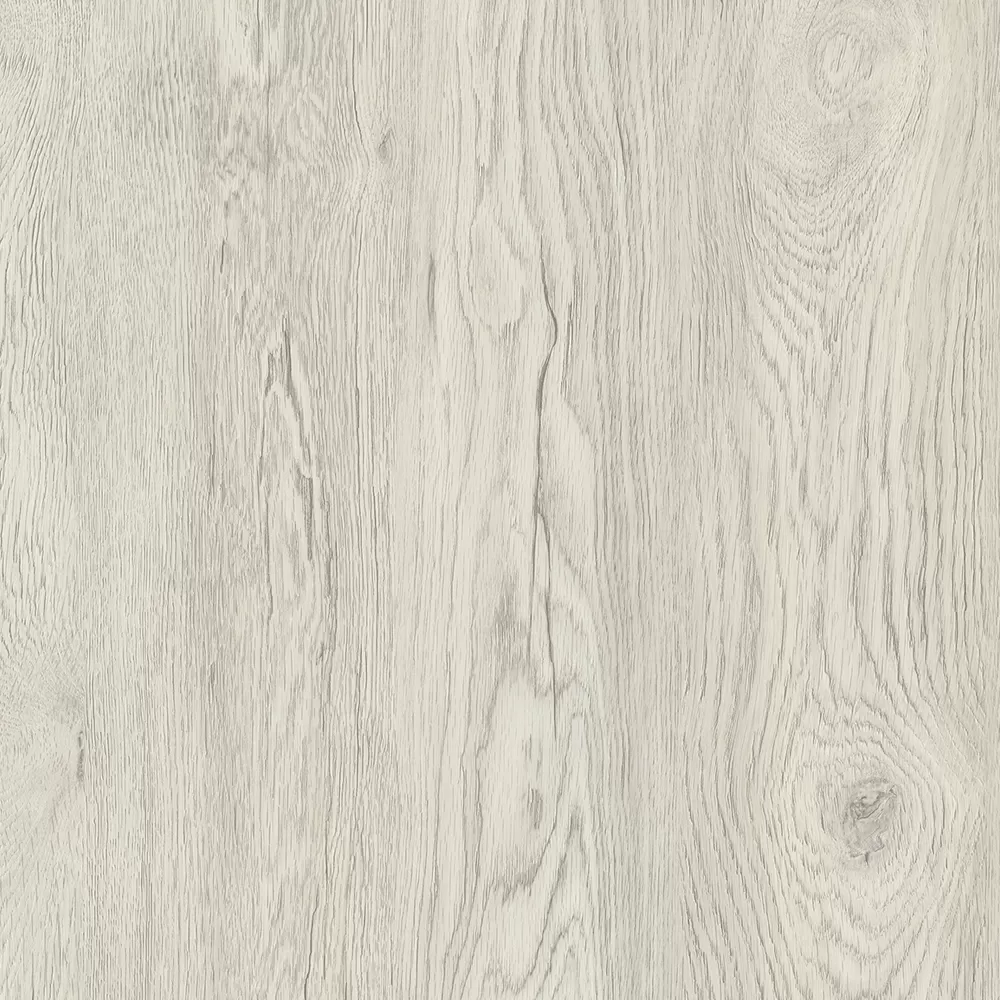

The Print Film: High-Definition Aesthetics and Repeat Patterns
Directly beneath the protective wear layer lies the design paper or print film. High-definition gravure printing presses or advanced industrial digital printers replicate natural timber, quarried stone, or poured concrete. The authenticity of the aesthetic depends on two variables: the resolution of the print film (typically measured in dots per inch) and the pattern repeat frequency.
Standard retail-grade flooring often utilizes a pattern repeat of 1 in 4 or 1 in 6 planks, leading to a repetitive, artificial appearance when installed over large areas. Commercial-grade luxury vinyl manufactured by TAB Flooring features pattern repeats of 1 in 12 or greater, accompanied by registered-in-embossing (EIR) processes. EIR aligns the physical surface texture with the visual print film, creating realistic grain lines, knots, and clefts that match the visual pattern.
The Core Options: Rigid Core (SPC) vs. Flexible LVT
The core formulation determines how the flooring responds to physical loads and environmental fluctuations. Specifiers must choose between flexible luxury vinyl tile (LVT) and Stone Plastic Composite (SPC) rigid core:
Flexible LVT Core: Composed primarily of PVC resin, plasticizers, and stabilizers. It offers superior flexibility, making it easier to cut and install around complex architectural features. However, it requires a pristine subfloor, as any subfloor imperfection will show through over time.
Stone Plastic Composite (SPC) Core: Formulated with approximately 60% to 70% calcium carbonate (limestone), combined with PVC resin and thermal stabilizers. This composition creates a high-density, rigid plank that resist heavy static loads and is less susceptible to telegraphing subfloor unevenness.
Resolving Common Resilient Flooring Failures
Specifying commercial flooring requires addressing potential points of failure before procurement. By analyzing the mechanical causes of installation failures, architects can select the correct luxury vinyl configuration to mitigate these issues.
Mitigating Telegraphing Through Subfloor Preparation and Core Stiffness
Telegraphing occurs when subfloor imperfections, such as trowel marks, minor cracks, or adhesive ridges, project through to the surface of the finished floor. This failure is common with thin, flexible vinyl products. To prevent this, specifiers have two pathways:
First, specify strict subfloor preparation protocols according to ASTM F710. This requires the subfloor to be dry, smooth, structurally sound, and free of foreign substances. Second, utilize a rigid SPC core product. The high flexural modulus of SPC prevents the plank from conforming to minor subfloor depressions or protrusions, ensuring a flat finished surface.
Managing Thermal Expansion and Contraction
Polyvinyl chloride is a thermoplastic polymer, meaning it expands when heated and contracts when cooled. In commercial spaces with large floor-to-ceiling windows, direct sunlight can elevate surface temperatures to over 50 degrees Celsius, leading to buckling, tenting, or gapping between planks.
To control dimensional deviation, quality luxury vinyl must undergo a structured annealing process during manufacturing. Annealing involves heating the vinyl sheets to relieve internal stresses induced during the extrusion or calendering process, followed by controlled cooling. TAB Flooring ensures all resilient products meet or exceed ASTM F2199 testing parameters, maintaining dimensional stability under fluctuating thermal conditions. Additionally, incorporating a perimeter expansion gap of 6mm to 8mm in the architectural layout accommodates normal structural shifts.
Manufacturing Customization and OEM Capabilities
Commercial projects often present unique acoustic, safety, or structural requirements that standard off-the-shelf flooring products cannot satisfy. Working with a dedicated manufacturer like TAB Flooring allows specifiers to customize the physical properties of the flooring to match specific project parameters.
Acoustic Performance and Integrated Underlayment
Sound transmission between floors is a significant concern in multi-family housing, hospitality, and corporate office designs. Bare concrete subfloors offer poor acoustic insulation, particularly for impact sound (such as footstep noise). To address this, luxury vinyl can be specified with integrated acoustic underlayments.
The most common backing materials are Irradiated Cross-Linked Polyethylene (IXPE) and Ethylene-Vinyl Acetate (EVA). An integrated 1.0mm to 1.5mm IXPE backing can improve the Impact Insulation Class (IIC) rating of the floor assembly, helping to meet regional building code requirements for sound attenuation. This integrated backing also eliminates the labor step of laying down loose underlayment during installation.
Compliance, Certifications, and Indoor Air Quality
Modern building standards, such as LEED, WELL, and BREEAM, place a strong emphasis on indoor air quality (IAQ) and chemical emissions. Since vinyl products utilize plasticizers to achieve flexibility, specifying low-VOC, phthalate-free luxury vinyl is necessary for green building compliance.
FloorScore Certification: Ensures that the flooring product has been tested by an independent laboratory and complies with the strict volatile organic compound (VOC) emissions criteria of California Section 01350.
Phthalate-Free Formulations: High-quality vinyl manufacturing processes utilize bio-based or non-phthalate plasticizers (such as DOTP) to eliminate concerns regarding endocrine-disrupting chemicals.
ISO 14001 and ISO 9001 Compliance: These certifications verify that the manufacturing facility operates under standardized environmental and quality management systems.
Installation Methodologies for Commercial Projects
Selecting the correct installation method is just as important as specifying the correct product. The choice between adhesive-applied systems and floating mechanical locking systems depends on the expected traffic, subfloor conditions, and future replacement strategies.
Glue-Down Systems
Glue-down installation involves adhering the luxury vinyl planks directly to the subfloor using a pressure-sensitive, acrylic-based adhesive. This method is the standard for heavy commercial environments with rolling loads (such as hospital gurneys, retail stock carts, and wheelchairs). The adhesive bond prevents the planks from shifting or separating under lateral shear forces. If a single plank is damaged in a glue-down installation, it can be individually removed and replaced without disturbing the surrounding floor area.
Click-Lock Mechanical Systems
Click-lock installations utilize a profile milled into the edges of the SPC or rigid LVT core to lock the planks together without adhesives. This floating floor system installs quickly and can be laid over existing flat hard-surface flooring, reducing surface preparation time and labor costs. This approach is beneficial for retail spaces with short lease cycles where the flooring needs to be replaced or removed without damaging the underlying subfloor.
Comparative Cost-Benefit Analysis
A realistic evaluation of any finish material must weigh the initial procurement and installation costs against the long-term lifecycle expenses. The table below illustrates how custom luxury vinyl compares to alternative commercial flooring materials over a standard 15-year facility lifecycle.
| Flooring Type | Relative Initial Cost | Installation Speed | Acoustic Absorption | 15-Year Maintenance Profile |
|---|---|---|---|---|
| Commercial Luxury Vinyl | Moderate | Fast | Moderate to High (with IXPE) | Low (No waxing, polishing, or sealing required) |
| Engineered Hardwood | High | Moderate | Moderate | High (Requires periodic sanding and refinishing) |
| Ceramic Tile | High | Slow | Low (Reflective surface) | Moderate (Grout cleaning and sealing required) |
| Commercial Carpet Tile | Low to Moderate | Fast | High | High (Requires frequent vacuuming and deep extraction) |
While materials like ceramic tile offer excellent physical durability, their rigid nature and labor-intensive installation process increase initial construction budgets. Conversely, while carpet tiles offer lower initial costs, their susceptibility to permanent staining and wear requires more frequent replacement cycles. Specifying luxury vinyl from TAB Flooring provides a balanced middle ground, offering high durability, low maintenance costs, and rapid installation turnaround times.
Frequently Asked Questions
Q1: What is the differences between SPC and traditional LVT luxury vinyl?
A1: Traditional LVT features a flexible, PVC-dominated core that requires a flat subfloor to prevent telegraphing. SPC (Stone Plastic Composite) incorporates a rigid core composed of limestone and PVC, which offers superior resistance to static loads, high dimensional stability, and better telegraphing resistance over minor subfloor variations.
Q2: Can luxury vinyl be specified in areas with high moisture exposure?
A2: Yes. Because vinyl is synthetic and non-porous, it is waterproof and will not swell or degrade when exposed to topical water. However, subfloor moisture vapor emissions must still be managed. An excessive moisture vapor emission rate (MVER) from a concrete subfloor can compromise the adhesives used in glue-down installations or lead to mold growth beneath a floating click-lock system.
Q3: What role does the wear layer thickness play in a commercial project?
A3: The wear layer thickness determines the floor's resistance to traffic-induced wear. For light commercial spaces (such as hotel rooms), a 0.50mm (20 mil) wear layer is sufficient. For heavy-traffic environments (such as retail lobbies, schools, and healthcare corridors), a 0.70mm (28 mil) wear layer is required to ensure long-term performance.
Q4: How does luxury vinyl contribute to green building certifications?
A4: High-quality luxury vinyl products contribute to certifications like LEED and WELL by holding FloorScore certification for low VOC emissions, utilizing phthalate-free plasticizers, and incorporating post-industrial recycled content. These environmental attributes help maintain indoor air quality and support sustainable material sourcing.
Q5: What is the recommended cleaning protocol for commercial luxury vinyl?
A5: The polyurethane surface coating on commercial-grade luxury vinyl allows for simple maintenance. Daily maintenance involves dust mopping or vacuuming to remove abrasive dirt and grit. For damp mopping, use a neutral pH commercial cleaner; avoid abrasive cleaning powders, highly alkaline detergents, or solvent-based polishes that can degrade the polyurethane finish.
Inquiry and Custom Specifications
Selecting the correct material specification is critical to the longevity and cost-efficiency of commercial interiors. TAB Flooring provides custom manufacturing services tailored to specific project demands, including custom wear layer thicknesses, integrated acoustic backings, custom dimensions, and proprietary color matching. To request physical material samples, technical datasheets, or a detailed quotation for an upcoming commercial project, please contact our specification and contract sales team directly with your project requirements.
